Quick Specs
Tower server | 5U (Rack Conversion)
Processor | Max: N/A1x Intel E3-1200 v6, or Pentium, or i3 Core, or Celeron
Memory | Max: 64GB4 DDR4 UDIMM 2400Mhz
Storage | Max: N/A8x 3.5” hot-plug SAS/NL-SAS/SATA (HDD/SSD)
Supports 2.5" HDD in 3.5" hybrid drive carrier
Boot OptionsIDSDM
USB
RAID Controller:S130 (SW RAID SATA)
PERC H330, H730, H830, 12GB SAS HBA
Broadcom® 5720 Dual Port 1Gb LOM
Remote Management:iDRAC8 with Lifecycle Controller
PCIe Slots: 4Slot 1: x8 PCIe 3.0
Slot 2: x16 PCIe 3.0
Slot 3: x1 PCIe 3.0 connected to PCH
Slot 4: x8 PCIe 3.0 connected to PCH
Platform Controller Hub (PCH)
GPU:Not Supported
Powerful and expandable 1-socket rackable tower server for small and medium businesses (SMB) and remote office/branch office (ROBO).
The Dell PowerEdge T330 is an excellent first server or replacement server for driving collaboration and productivity applications in SMB. Compared to the PowerEdge T130, the T330 offers greater internal storage capacity (8 HDDs vs. 4 HDDs), hot-plug HDDs and redundant power supplies. In addition, compared to the previous-generation T320, the T330 supports the full-feature remote management of the Dell integrated Remote Access Controller (iDRAC8) with Lifecycle Controller, making the T330 highly attractive for ROBO of large institutions.
- 1-socket rackable tower server with choice of latest Intel Xeon E3-1200 v6 processors
- 4 PCI-e Slots
- Up to 4 x DDR4 UDIMMs
- Up to 8 x 3.5" hard drives
Configurations:

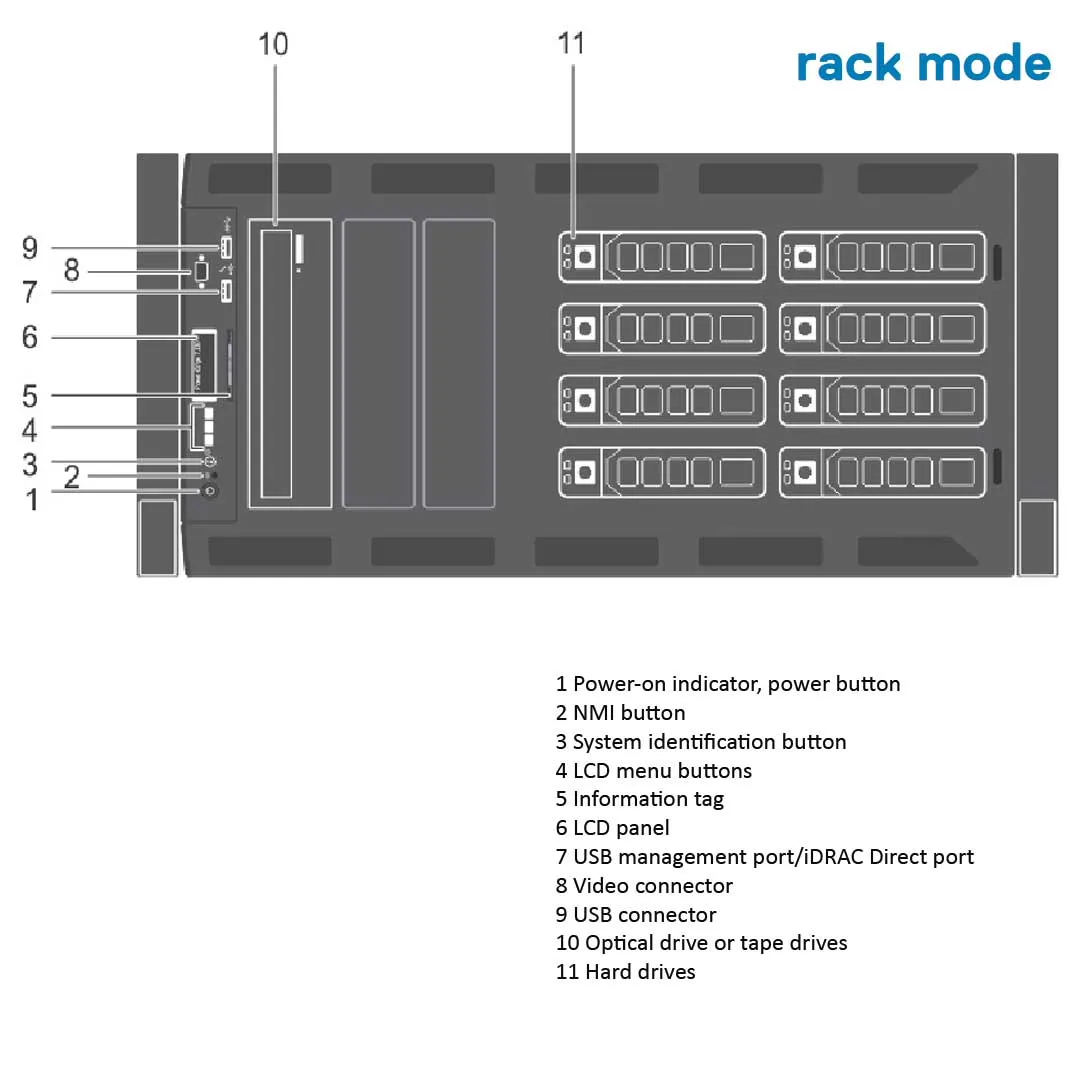

This server can be a Rack or Tower Server
Supports 4x3.5" or 8x3.5" Drives.
All 2.5" Drives will be installed in a 3.5" HD Carrier.
Deliver powerful performance
Accelerate compute performance across a wide range of applications with a processor from the latest Intel Xeon processor E3-1200 v6 product family. Drive 50% faster clock speed with enhanced DDR4 memory compared to DDR3, which is 12.5% faster than the initial 2133 MT/s implementation of DDR4. Boost I/O data throughput with 4 x PCIe 3.0 slots driving 2x data throughput compared to PCIe 2.0. Deliver 2x IOPS performance with T330/PERC9 compared to the previous-generation T320/PERC8.
Accelerate application performance
Accelerate application performance while providing room for future growth with the latest Intel processors, DDR4 memory and PCIe Gen3 I/O.
- Drive greater memory performance with 4 x DIMM slots and enhanced DDR4 memory offering 50% faster clock speed than previous-generation DDR3 which is 12.5% faster than the initial 2133 MT/s implementation of DDR4.
- Boost data throughput with 4 x PCIe Gen 3.0 slots driving 2x data throughput compared to Generation 2.0.
- Drive 2x IOPS performance with the PowerEdge PERC9 RAID Controller, compared to previous-generation PowerEdge T320 equipped with PERC8.
- Ensure fast response times with the latest quad core Intel Xeon E3-1200 v6 product family, as well as flexible dual core processor options including Intel Pentium, Intel Core i3®, or Intel Celeron.
Discover greater versatility
- Grow data storage at your own pace with up to 8 x internal 3.5" hot-plug hard drives.
- Expand memory capacity as you grow, with support for up to 64GB total memory footprint.
- Easily and flexibly attach peripheral devices with eight external USB ports.
